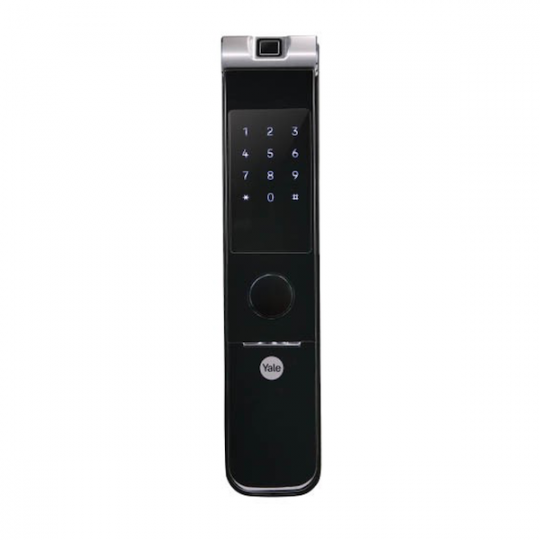

Yale YMF40A RL

Special Price $899.00 Regular Price $999.00

Fingerprint. PIN code. Mechical Key overwrite.

Bluetooth BLE Enabled,  Z-Wave Enabled (Optional).

Suitable for Condo and Landed main wooden door with long handle bar.

Add to Wish List

Digital Lock Yale YMF40A RL is a smart mortise lock with roller featuring the new Yale one touch fingerprint verification system.  It is suitable to installed on condo and landed home main wooden door that have an long handle bar

In addition, with its new software system, Bluetooth or Z-Wave Smart Home connectivity can be enable by adding a suitable additional module. The module can be plugged into the existing slot next to the batttery compartment.


Key Features:

  • One touch Fingerprint Access
  • Pincode
  • Mechanical keys overriding
  • Bluetooth BLE Enabled
  • Z-Wave Enabled (Optional)
  • Automatic locking
  • Lock Out Feature: After 5 fail attempts- wrong pin or invalid fingerprint, 3 minute lockout mode would be activated
  • Intrusion/Damage Alarm
  • High Temperature Alarm
  • Internal Forced Lock
  • Fake Pin Code
  • Low-battery alarm and emergency power supply terminal
  • Works with Yale Access App to access your lock remotely (require additional Yale Access Bridge and Yale Access Bluetooth Module)
  • Work with Yale Remote Control (require additioanl Yale RF module and Remote controller)



Mechanism:  Roller Mortise

Fingerprint: Up to 20

Mechanical key: 2

PIN code: 6 - 12 digits

Color: Black

Door Thickness: Wooden Door, 40-80mm

Backset: 60mm

Front body dimension: 76.6 (W) x 334.6 (H) x 28 (D) mm

Back body dimension: 76.6 (W) x 304.6 (H) x 35 (D) mm

Power supply: AA Batteries x 4
