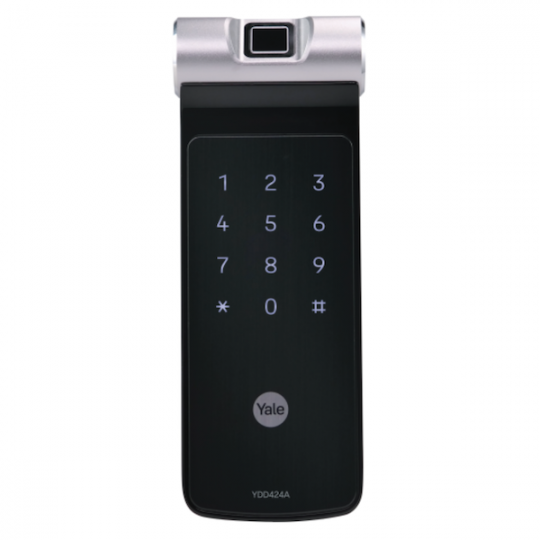

Yale YDD424A


Fingerprint. PIN code. Mechical Key overwrite.

Bluetooth BLE Enabled (Optional).  Z-Wave Enabled (Optional).

Suitable for HDB, Condo and Landed main wooden door and room wooden door.

Yale YDD424A is a smart deadbolt lock featuring the new Yale one touch fingerprint verification system.  It is suitable to installed on HDB, condo and landed home main wooden door and room wooden door.

In addition, with its new software system, Bluetooth or Z-Wave Smart Home connectivity can be enable by adding a suitable additional module. The module can be plugged into the existing slot next to the batttery compartment.


Key Features:

  • One touch Fingerprint Access
  • Pincode
  • Mechanical keys overriding
  • Bluetooth BLE Enabled (optional)
  • Z-Wave Enabled (Optional)
  • Automatic locking
  • Lock Out Feature: After 5 fail attempts- wrong pin or invalid fingerprint, 3 minute lockout mode would be activated
  • Intrusion/Damage Alarm
  • High Temperature Alarm
  • Internal Forced Lock
  • Fake Pin Code
  • Low-battery alarm and emergency power supply terminal
  • Works with Yale Access App to access your lock remotely (require additional Yale Access Bridge and Yale Access Bluetooth Module)
  • Work with Yale Remote Control (require additioanl Yale RF module and Remote controller)



Mechanism:  Tubular deadbolt

Fingerprint: Up to 100

Mechanical key: 3

PIN code: 4-10 digit (Up to 100)

Color: Champagne Gold

Door Thickness: Wooden Door, 35-55mm

Backset: 60-70mm

Front body dimension: 66 (W) x 176 (H) x 31.5 (D) mm

Back body dimension: 70 (W) x 170 (H) x 35 (D) mm

Power supply: AA Batteries x 4
