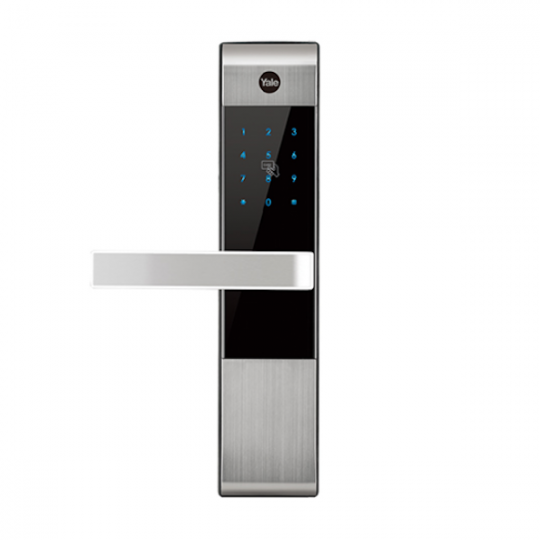

Yale YDM3109A

Special Price $799.00 Regular Price $899.00

RFID Card. PIN code. Mechical Key overwrite.

Bluetooth BLE Enabled (Optional).  Z-Wave Enabled (Optional).

Suitable for HDB, Condo and Landed main wooden door.

Add to Wish List

Yale YDM3109A is a high quality smart mortise lock  with multiple modes of access: RFID Card, PIN Code, Mechnical Key and Bluetooth (Optional). It is suitable to replace existing mortise lock or to be installed on new door for HDB, condo and landed home main wooden door.

In addition, with its new software system, Z-Wave Smart Home connectivity can be enable by adding a suitable additional module. The module can be plugged into the existing slot next to the batttery compartment.


Key Features:

  • RFID Card
  • Pincode
  • Mechanical keys overriding
  • Bluetooth BLE Enabled (Optional)
  • Z-Wave Enabled (Optional)
  • Automatic Locking
  • Lock Out Feature: After 5 fail attempts- wrong pin or invalid fingerprint, 3 minute lockout mode would be activated
  • Intrusion/Damage Alarm
  • High Temperature Alarm
  • Internal Forced Lock
  • Fake Pin Code
  • Low-battery alarm and emergency power supply terminal
  • Voice Guidance
  • Works with Yale Access App to access your lock remotely (require additional Yale Access Bridge and Yale Access Bluetooth Module)
  • Work with Yale Remote Control (require additioanl Yale RF module and Remote controller)



Mechanism:  Mortise Lock

RFID Card: 4 Cards (Registered up to 100 cards)

PIN Code: 4-10 digits (Up to 100 User Code)

Mechanical key: 2

Color: Silver

Door Thickness: Wooden Door, 40-80mm

Backset: 60-70mm

Front body dimension: 68.6 (W) x 306.6 (H) x 70.6 (D) mm

Back body dimension: 72.8 (W) x 306.6 (H) x 80.8 (D) mm

Power supply: AA Batteries x 4
