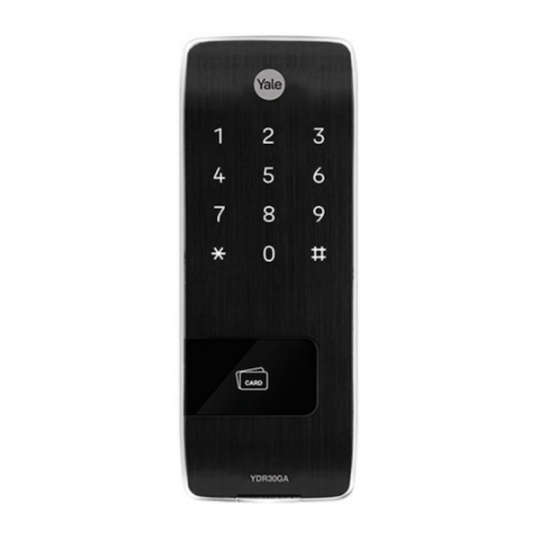

Yale YDR30GA Access Gate Lock

Special Price $599.00 Regular Price $799.00

RFID Key Tag. PIN Code. Bluetooth. Remote Control. Mechanical Key

Z-Wave enabled (Optional)

Promotion package available - bundle with wooden door Yale digital lock.


Add to Wish List

Yale YDR30GA is a digital lock specially design for metal gate.  It can be unlocked by RFID key tag, PIN Code, Smartphone through Bluetooth, Remote control and Mechanial Key. The lock can also be programmed to link to a Yale digital lock for wooden door - when unlock the gate digital lock, the wooden door digital lock will be unlocked at the same time.


Key Features:

  • Yale Access App - control by Smart Phone.
  • RFID Key Tag
  • PIN Code
  • Mechanical Key
  • Remote Control
  • 3 minute log out feature - after 5 unsuccessful attempts of invalid code or RFID key tag or fingerprint, lock out mode is activated for 3 minutes
  • Fake PIN Code
  • Internal Forced Lock
  • External Forced Lock
  • Intrusion/ Broken Alarm
  • Low Battery Alarm and Emergency Power Supply
  • Bluetooth enabled
  • Z-Wave enabled (Optional)
  • Netowrk controller (Optional)



PIN Code: User Pin 4-10digits. Up to 100

RFID Key Tag: Come with 4.  Up to 100

Mechanical Keys: 3

Remote Control: 1

Power supply: AA Battery x 4

Front Body: 70(W) x 183(H) x 21(D) mm

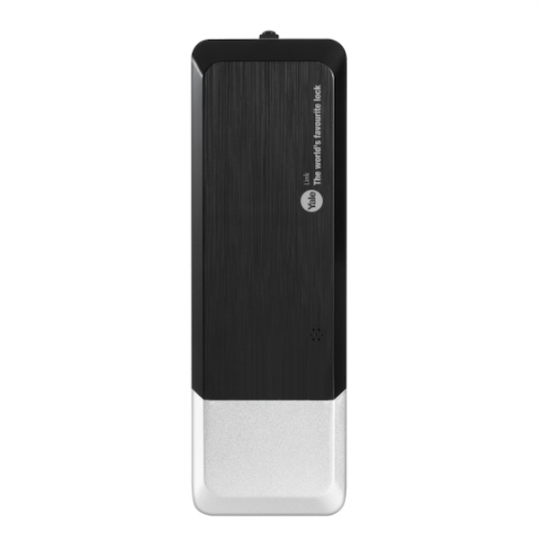

Back Body: 77(W) x 220(H) x 40(D) mm
