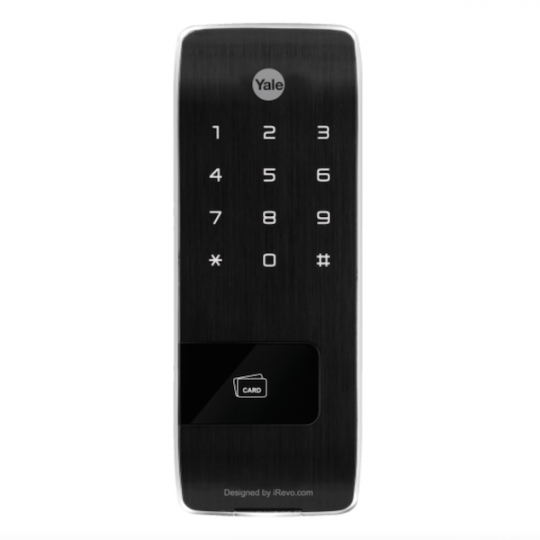

Yale YDR343

Special Price $399.00 Regular Price $499.00

<p>RFID Card. PIN code.</p>

<p>Suitable for HDB and&nbsp;Condo main wooden door and room wooden door. (Depend on existing handle)</p>

Add to Wish List

Yale YDR343 is the slimmest and most affordable Yale smart rim with multiple access: RFID Card and pin code. It is suitable to be installed on HDB and condo main wooden door and room wooden door, depending on existing lock handle. In addition, the unique rear vertical Rim lock design enable the digital lock to match to wide range of door layout and design


Key Features:

  • RFID Card
  • Pincode
  • Automatic locking
  • Lock Out Feature: After 5 fail attempts- wrong pin or invalid card, 3 minute lockout mode would be activated
  • Intrusion/Damage Alarm
  • High Temperature Alarm
  • Internal Forced Lock
  • Fake Pin Code
  • Low-battery alarm and emergency power supply terminal
  • Work with Yale Remote Control (require additioanl Yale RF module and Remote controller)



Mechanism: Rim Lock

RFID Card: 4 Cards (Up to 40)

PIN code: 4-12 digit

Door Thickness: Wooden Door, 35-55mm

Front body dimension: 67.9 (W) x 178.8 (H) x 12 (D) mm

Back body dimension: 77.5 (W) x 190.5 (H) x 48.8 (D) mm

Power supply: AA Batteries x 4
