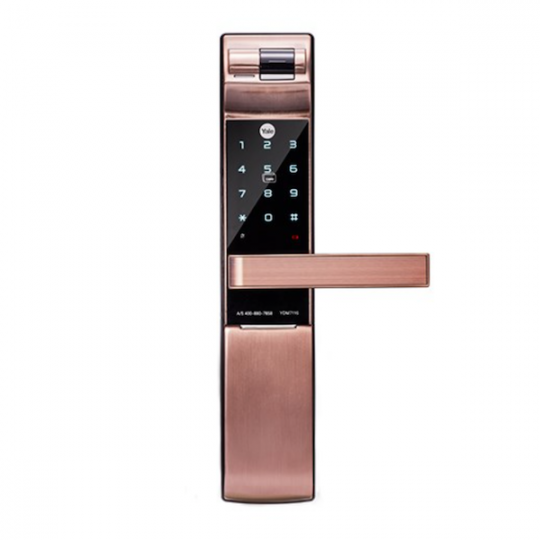

Yale YDM7116 RB


Fingerprint. PIN code. RFID Card. Mechical Key overwrite.

Bluetooth BLE Enabled.  Z-Wave Enabled (Optional).

Suitable for HDB, Condo and Landed main wooden door.

Yale YDM7116 RB is a digital lock with mortise lock mechanism with multiple modes of access: Fingerprint, PIN Code, RFID Card, Mechnical Key and Bluetooth.  The design of with lever handle makes it suitable to replace existing mortise lock or to be installed on new door for HDB, condo and landed home main wooden door.

In addition, with its new software system, Z-Wave Smart Home connectivity can be enable by adding a suitable additional module. The module can be plugged into the existing slot next to the batttery compartment.


Key Features:

  • Fingerprint Verification (progressive Scan)
  • Pincode
  • RFID Card
  • Mechanical keys overriding
  • Bluetooth BLE Enabled
  • Z-Wave Enabled (Optional)
  • Automatic Locking
  • Lock Out Feature: After 5 fail attempts- wrong pin or invalid fingerprint, 3 minute lockout mode would be activated
  • Intrusion/Damage Alarm
  • High Temperature Alarm
  • Internal Forced Lock
  • Fake Pin Code
  • Low-battery alarm and emergency power supply terminal
  • Works with Yale Link App to access your lock remotely (require additional Yale Link Bridge and Yale Link Bluetooth Module)
  • Work with Yale Remote Control (require additioanl Yale RF module and Remote controller)



Mechanism:  Mortise Lock

Fingerprint: Up to 20

PIN code: 4-10 Digits (Up to 30 User Code)

RFID Card: 4 Cards (Registered up to 40 cards)

Mechanical key: 2

Color: Red Bronze

Door Thickness: Wooden Door, 40-80mm

Backset: 70mm

Front body dimension: 68 (W) x 340 (H) x 40.18 (D) mm

Back body dimension: 72 (W) x 344 (H) x 36 (D) mm

Power supply: AA Batteries x 4
